ID Grinding & Honing

Precision Grinding for Internal Diameters and Tight Tolerances

What Is ID Grinding and Honing?

ID (Internal Diameter) grinding is a precision machining process used to remove material from the inner diameter of cylindrical or conical parts. It employs a rotating abrasive wheel to achieve tight tolerances and smooth finishes on the internal surfaces of components. ID grinding is commonly used for applications where precise inner dimensions and surface finishes are required, such as in automotive bushings, gear bores, bearings, and hydraulic components. The process is capable of removing material in the range of thousandths of an inch, making it suitable for finishing operations where accuracy is crucial.

Honing is a finishing process that uses abrasive stones to remove very small amounts of material from the inner surface of a workpiece. The primary goal of honing is to improve the surface finish, roundness, and dimensional accuracy of the bore. Honing produces a distinctive cross-hatched microfinish that is extremely smooth and consistent, often used to enhance the fit and function of mating parts, such as the bore of a cylinder and its piston. Honing typically removes material in the range of ten-thousandths of an inch, making it a slower but more precise process than ID grinding.

ID Grinding and Honing: Achieve Superior Internal Precision

Heald 273A Universal I.D Grinder – Versatility makes it suitable for both single-part and job-lot production runs. Okamoto IGM-15NC – Incorporates advanced features such as CNC controls, which allow for automated operation and the programming of complex grinding paths. This enhances productivity and repeatability while reducing operator intervention. At CPG, our ID grinding services can:

handle diameters up to 8” with lengths up to 8”
achieve tolerances as tight as 0.0002”
get down to an 8 Ra finish

Our honing services improve surface finishes and cylindricity for parts with precise internal dimensions—using Sunnen EC-3500 honing centers and Sunnen 1800 & 1804 power strokers to deliver superior finishes on internal diameters, ensuring high-quality results for demanding applications. CPG’s honing capabilities:

range from as small as 0.125″ diameter up to 9″ diameter
hold tolerances of 0.0002″
get down to an 8 Ra finish

Is CPG’s ID Grinding and Honing Right for Your Application & Industry?

CPG’s ID grinding and honing services are ideal for industries like aerospace, automotive, and medical device manufacturing, where internal features like bores and housings must meet the highest precision standards.

If your components require tight internal tolerances, our ID grinding and honing solutions can meet your needs with proven reliability and performance.

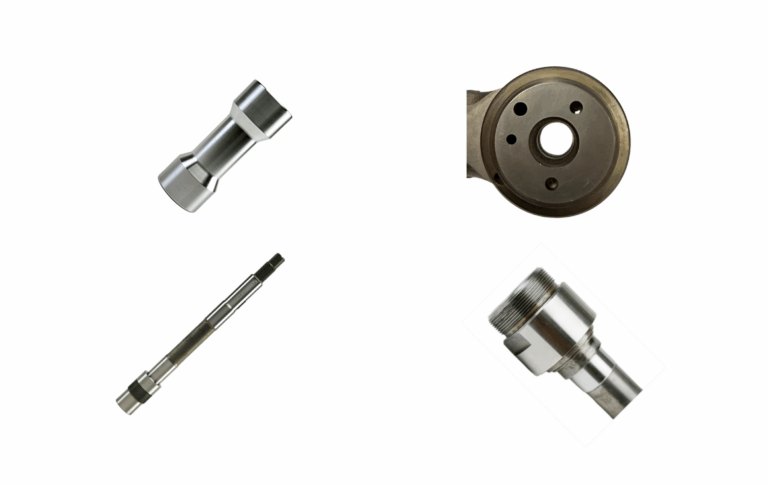

Below are just some examples of the ID grinding and honing work we’ve done for OEMs and other manufacturers in metro Milwaukee and throughout the Midwest.

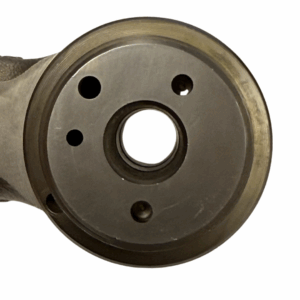

Part type: Spindle Shaft – OD Grinding & ID Grinding

Industries: Agriculture, Auto/Transportation, Oil & Gas Services, Recreational Vehicle/Power Sports

Applications: Shafts used in any industry with a moving part

Part type: Spindle Shaft – OD and ID Grinding

Industries: Agriculture, Auto/Transportation, Oil & Gas Services, Recreational Vehicle/Power Sports

Applications: Shafts used in any industry with a moving part

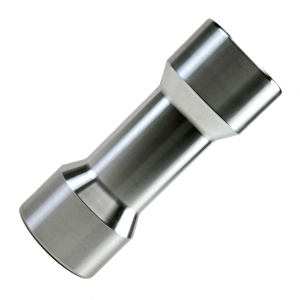

Part type: Boom Roller – OD Grinding and ID Grinding

Industries: Building/Construction Equipment

Applications: Boom trucks are versatile, truck-mounted cranes used for lifting and transporting materials, particularly in construction and utility applications.
