Centerless Thru-Feed & In-feed Grinding

Efficient, High-Volume Grinding for Precision Cylindrical Parts

What Is Centerless Thru-Feed & In-Feed Grinding?

Centerless grinding is a process that removes material from the outside diameter of a workpiece using abrasive cutting, but unlike traditional cylindrical grinding, it does not require the workpiece to be held or supported at its center by a spindle or fixture. Instead, the workpiece is positioned between two rotating wheels—a high-speed grinding wheel and a slower-speed regulating wheel—along with a work-rest blade that supports the workpiece from below.

There are two main types:

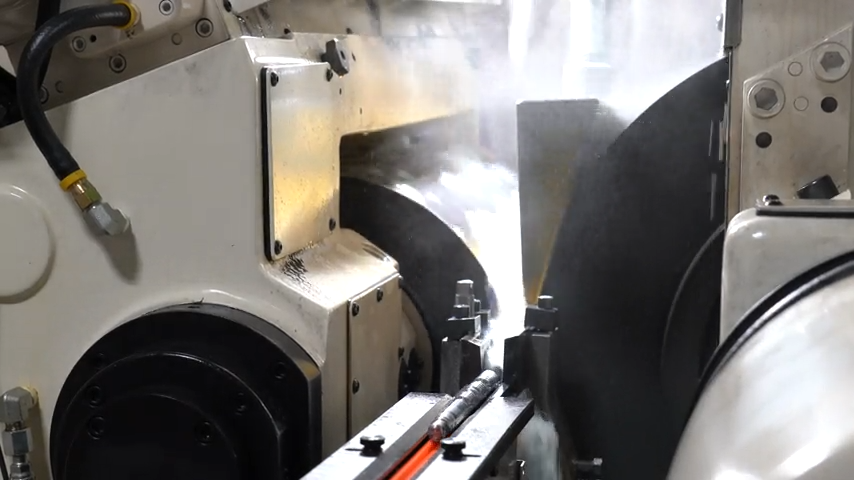

Through-feed grinding: The workpiece passes completely through the grinding wheels, suitable for simple cylindrical shapes.

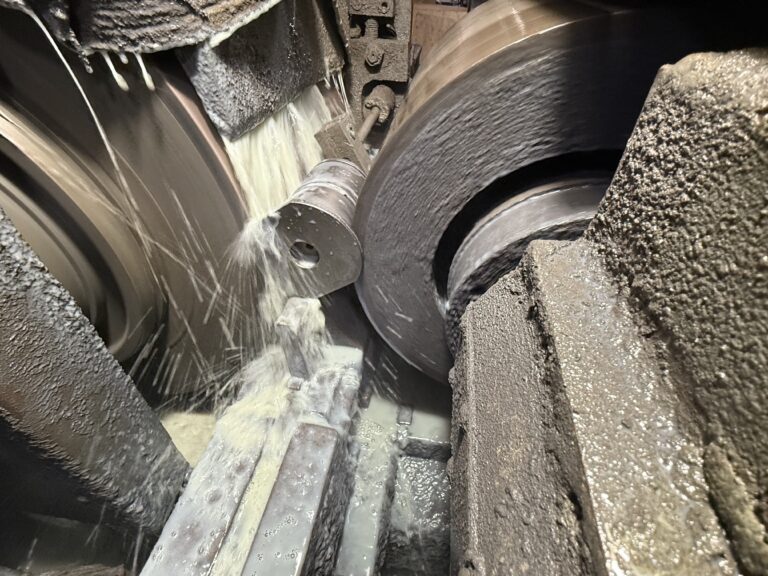

In-feed (plunge) grinding: The workpiece is fed radially into the wheels, allowing for more complex shapes or parts with shoulders.

Centerless grinding is widely used for producing high-precision cylindrical parts such as:

Shafts
Pins
Valves
Tappets
Bushings
Rods

Centerless Thru-Feed & In-Feed Grinding: Ideal For Low Volume And High-Volume With Precise Results

Our centerless grinding services are designed to provide fast, efficient, and accurate grinding for parts. We can grind longer parts with ease and hold tight tolerances, ensuring your parts are produced efficiently and to exact specifications. Centerless grinding provides exceptional finishes and tight OD tolerances often required after CNC Swiss Turning of precision machined components.

0.125 to 4 inch diameter
Tolerances to 0.0001 inch diameter, finishes to 8 Ra, roundness < 0.0001 inch

With a variety of specialized centerless grinding machines, we can meet demanding requirements for low-volume, and high-volume production runs.

Cincinnati 350-20 RK Twin Grip – Thru-feed
Cincinnati 340-20 Twin Grip – Thru-feed with part loading automation
(2) Cincinnati 220-8 – Thru-feed
(4) Cincinnati #2 – Infeed/Plunge
Cincinnati 325-12 – Infeed/Plunge
Cincinnati Cinco-15 – Infeed/Plunge

Is CPG’s Centerless Grinding Right for Your Application & Industry?

CPG’s centerless thru-feed and in-feed grinding services are ideal for industries like automotive, medical device manufacturing, and industrial equipment, where precision is critical for parts like bushings, pins, and rollers. CPG provides green grinding prior to surface finish treatment along with finish grinding after surface treatment to exact final tolerance requirements.

If you’re looking for fast, precise grinding for cylindrical parts, our centerless thru-feed and in-feed grinding solutions can meet your needs with proven reliability and performance.

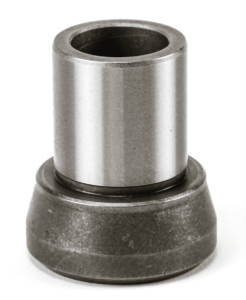

Part type: Spool Bushing

Industries: Agriculture, Auto/Transportation, Building/Construction Equipment, Military/Defense Equipment, Oil & Gas Services, Recreational Vehicle/Power Sports

Applications: A hydraulic spool valve is a crucial component in hydraulic systems, acting as a directional control valve that regulates the flow of hydraulic fluid by shifting a cylindrical part called a spool within the valve body.

Part type: Socket Push Rod- Centerless Infeed/Plunge

Industries: Agriculture, Auto/Transportation, Building/Construction Equipment, Military/Defense Equipment, Oil & Gas Services, Recreational Vehicle/Power Sports

Applications: Pushrods transmit motion from the camshaft to the rocker arms, which in turn open and close the engine valves. Used in the valve train of internal combustion engines.

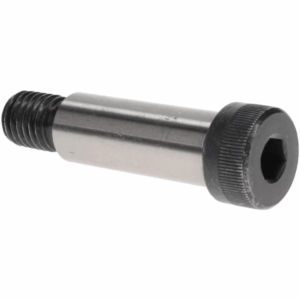

Part type: Shoulder Bolt – Centerless Infeed/Plunge

Industries: Agriculture, Auto/Transportation, Building/Construction Equipment, Military/Defense Equipment, Oil & Gas Services, Recreational Vehicle/Power Sports

Applications: Precision shoulder bolts are high-accuracy fasteners designed for demanding applications requiring precise alignment, smooth motion, and reliable load-bearing capabilities.

Part type: Hydraulics Spool – Centerless Thru -Feed

Industries: Agriculture, Building/Construction Equipment, Military/Defense Equipment

Applications: Hydraulic spools are vital for controlling the direction and flow of hydraulic fluid, enabling various functions in a wide range of machinery and equipment.

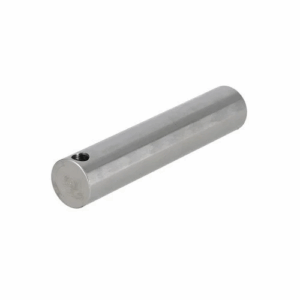

Part type: Pivot Pin – Centerless Thru-Feed

Industries: Agriculture, Building/Construction Equipment, Military/Defense Equipment

Applications: Precision pivot pin is a specialized pin designed and manufactured with high accuracy to function as a crucial element in various hinge and rotational mechanisms.
